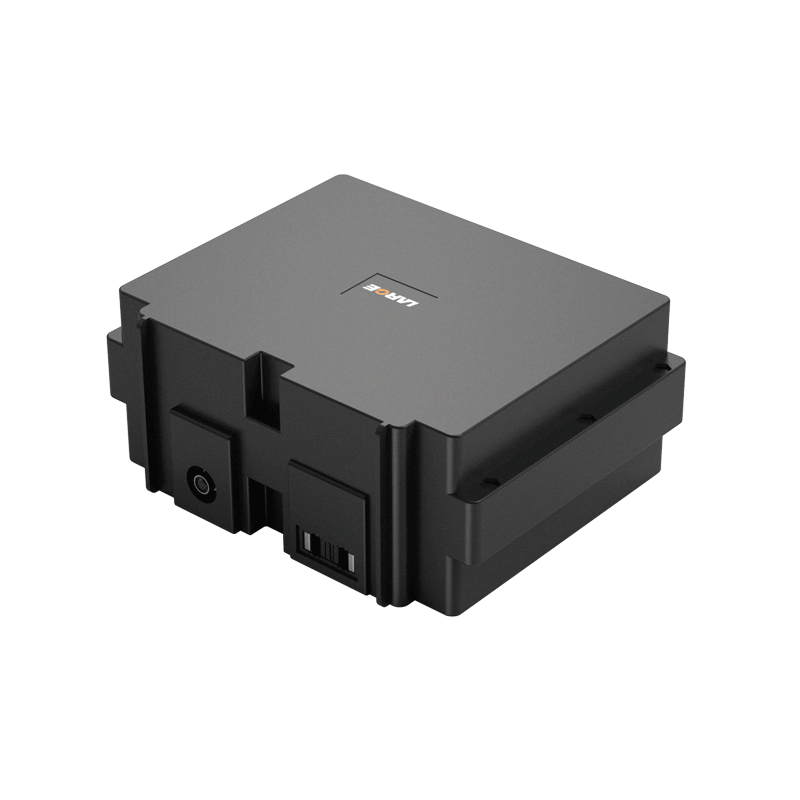

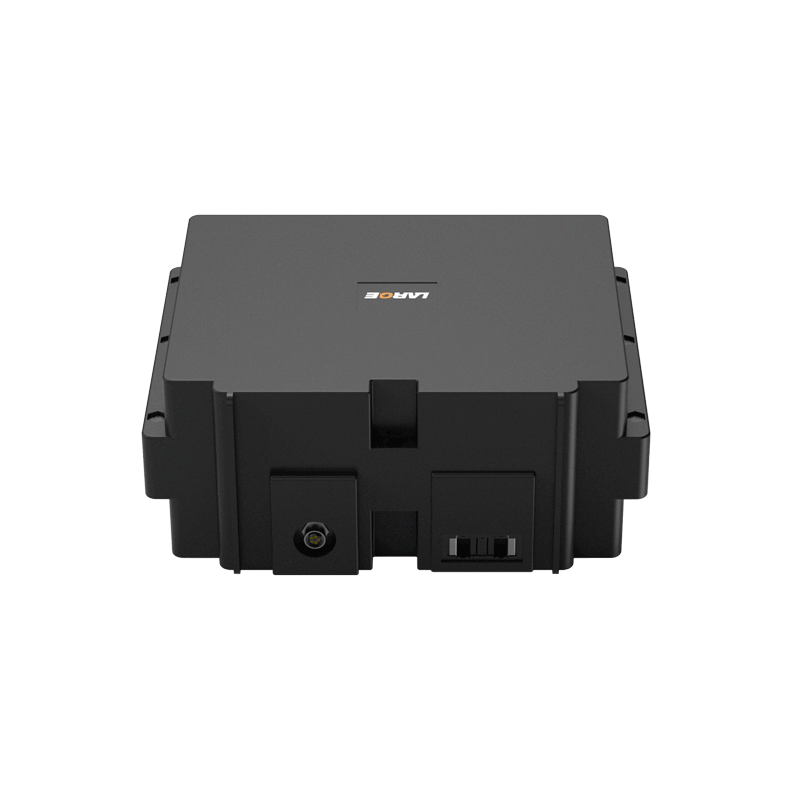

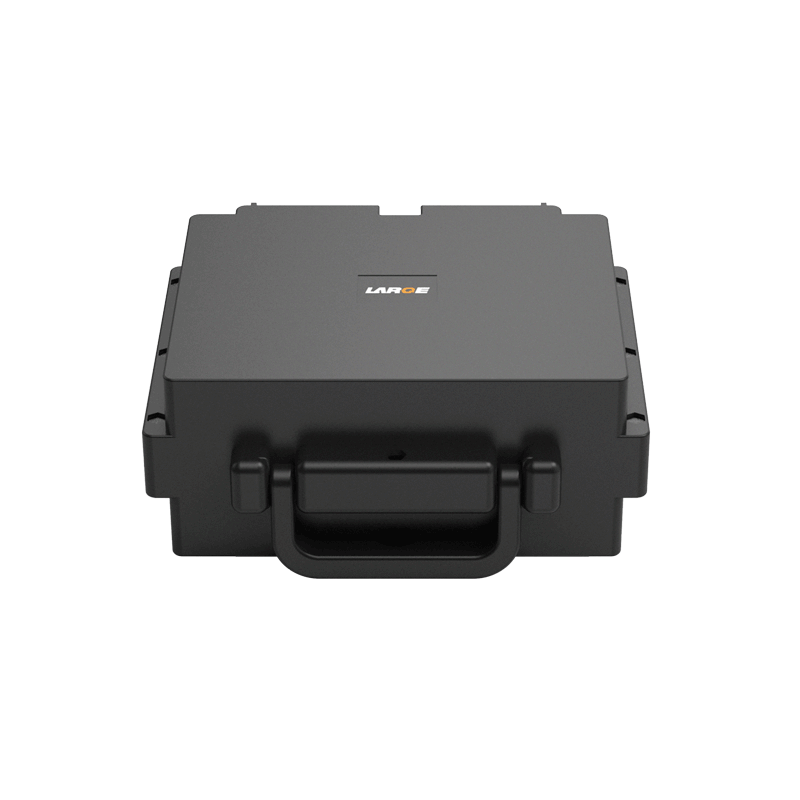

21700 3.6V 5000mAh消杀设备电池

Product number: 08DQ0034-02T

Cell model: LR21700/5000mah /3.60V

Specification: 21700-7S6P-29.4 AH-25.2V

Product size: 213*181.5*88.5mm (Max)

Nominal voltage: 25.2V

Nominal capacity: 29.4Ah

Charging voltage: 29.4V

Charging current: ≤ 8.82A

Discharge current: ≤20A

Discharge cut-off voltage: 19.6V

Finished product internal resistance: ≤150mΩ

Battery weight: 4.2kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55 ℃

Storage temperature: -20~+50℃ (less than 1 month) -20~ 40 ℃(less than 3 months); -20~+20℃ (less than 12 months)

Battery packaging: PVC heat shrinkable film packaging + plastic shell (provided by customers)

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: disinfection equipment

Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to be installed.

2.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

3.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
